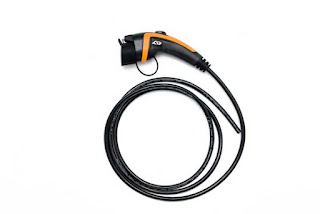

SAE Type 1 Charging Cable

**Posted by Felix at 10:00 AM

 Mechanical Properties



Mechanical life: no-load plug>10000times



Impact of external force: be able to afford 1m drop and 2tons vehicle run over pressure

Insertion and extraction force:<100N



Electrical Performance



Rated current: 16A/20A/32A



Rated voltage: 120V/250V

Insulation resistance: >1000MΩ(DC500V)

Pins temperature rise:<50K

Withstand voltage: 2500V

Contact impedance: 0.5mΩMax



Raw Material



Shell material: thermoplastics, flame retardant grade UL94-0

Plug pin:copper alloy, silver-plate



Environmental Performance



Temperature: -30℃~+50℃



SAE Type 1 Charging Cable Features

Conform to the provisions and requirements of SAE J1772 Standard-2012, it can charge all EV manufactured in the USA, correctly and effectively with high compatibility.



Using a riveting pressure process with none screw with beautiful appearance. Hand-held design conforms to ergonomic principle,  plug conveniently. The head of pins using insulation design to prevent direct contact with the hand.  The customer is able to install the charger indoors or outdoor, according to actual demand. Firmly locking the charger on the installation backplane can prevent theft.



XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improves the bending life and wears resistance of the cable. The best material in the market at present conforms to the latest European Union standards.



Special internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate the water from the body and enhance the safety level even in bad weather or special circumstances.



Adopted double color coating technology, custom color accepted (the regular color orange, blue, green, gray, white)



Keep the laser logo space for customers. Provide OEM/ODM service to help customers expand the market easier.



Application of SAE Type 1 Charging Cable Features

Apply to Vehicle



Tesla model3, Tesla Model S, Tesla Model X, BAIC EU-Series, BYD Yuan/S2 EV, BYD e5, Chevrolet Volt, Mia, Mia Electric Van, Mitsubishi OUTLANDER PHEV, Nissan NV200 SE Van, Nissan leaf, SAIC Baojun E-Series, SAIC Roewe Ei5 EV, BMW 530e/Le, Renault Zoe, Hyundai Kona EV, BMW i3, BYD Tang PHEV, Chery eQ EV, Toyota Prius PHEV, Volkswagen e-Golf, Geely Emgrand EV, Great Wall Ora R1 EV



Application in area



Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging



SAE Type 1 Charging Cable Features Parameter

AG ELECTRICAL EV Charging cable Type2 acquires all safety and production certificates in electrical filed, ISO9001, ISO 14001, OHSAS 18001, SAE J1772-2012



Product Type

EV Charging Cable Type 1

Rated Current

16A/20A/32A

Rated Voltage

120V/250V

Phase

One Phase/Single Phase,Three Phase

Cable Specification

H07BZ5-F3X2.5mm²+2x0.5mm²

Wire length and the end of treatment according to the client configuration)

H07BZ5-F3X6mm²+2x0.5mm²

Length

Regular 5m, custom length accepted

Color

orange, blue, green, gray, white, custom color accepted

Warranty

12 months

Certificate

CE

Packaging Details

Standard export wooden case or carton. Or as customer requirements

Delivery Time (days)

Within 15days, if quantity >100, to be negotiated



AG ELECTRICAL is one of professional ev charging suppliers. We provide GB/T EV Charging Cable, GB/T Portable EV Charger, j1772 charging cable, sae j1772 cable, j1772 extension cable, j1772 connector for sale, j1772 replacement connector and so on. Want to know about j1772 type 1, type 1 sae j1772 and sae j1772 type 1? Please contact us.
