Mechanical Life

Mechanical life: no-load plug>10000times

Insertion force:<100N

Applied Material

Shell material: thermoplastics, flame retardant grade UL94-0

Contact - tube: Copper alloy, silver plated

Environmental performance

Operating temperature: -30℃~+50℃

Electrical Performance

The rated current: 10A、16A、32A、63A

The rated voltage: 250V/440V

Insulation resistance: > 1000MΩ(DC500V)

Pins temperature rise:<50K

Withstand voltage: 2500V

Contact impedance: 0.5mΩMax

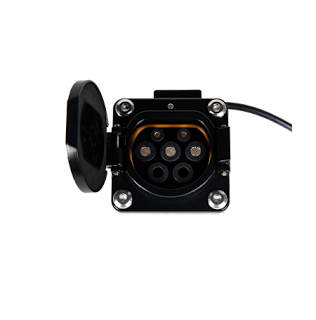

Features of GB/T  EV AC Charging Socket

Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/ T 20234.2-2015.

Have a electromagnetic locking device (can match with hela lock), have functions of signal feedback.

Have one or two PTC (PT1000) thermistor (can match with hela lock), have functions of signal feedback.

Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.

Reliable material, flame retardant, presssure proof, wear-resisting , impact resistance, high oil proof .

Excellent protection performance, prodection grade achieved IP55 (working condition).

AG ELECTRICAL as one of the top ev charger manufacturers, can provide open-end GBT electric vehicle charging cable typesthat can meet the needs of charging pile hardware companies and requirements from retailers as they have a different market target.

As one of the leading electric car charging companies, we offer different types ev charging adaptors for you.

Product Specification and Cable Standard
